THE VEHICLE IS LOCATED IN WILMINGTON, NC

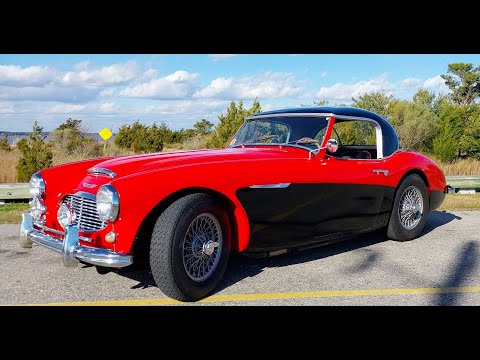

This 1957 Austin-Healey 100-6 four-seat BN4 roadster is finished in
two-tone red and black over a reupholstered black leather interior
and powered by a 2.6-liter inline-six mated to a replacement
four-speed manual transmission with a Laycock overdrive unit.
Equipment includes a four-wheel disc-brake conversion, Dayton 15?
wire wheels, dual SU carburetors, a Moto-Lita steering wheel, a
Smiths heater and instrumentation, driving lamps, and a
black-finished removable hardtop. The car was acquired by the
seller in February 2023, and subsequent service has involved
installing a section brake line to extend the bleed screw for the
clutch slave cylinder and replacing the knock-off nuts and clutch
cylinder along with the speedometer cable and angle drive. This BN4
is now offered with removed and spare parts, a British Motor
Industry Heritage Trust certificate, and a clean North Carolina
title in the seller's name.
The car left the factory finished in Ivory White and was repainted
in two-tone red and black under previous ownership. A black
removable hardtop with a replacement rear window is currently
installed along with brightwork that includes a badge bar, driving
lamps, fender moldings, front-fender flash trim, a windshield-post
side mirror, external trunk hinges, and bumpers with overriders.
The match lines of the doors are imperfect with a few paint chips,
cracks, and touch-ups along with a crease in the right-front
fender. We can provide more pictures of these areas if you would
like.
Dayton 60-spoke 15? wire wheels are finished in silver, secured by
replacement two-eared knock-off nuts, and mounted with Michelin XAS
tires that show 2014 date codes. A four-wheel disc-brake conversion
installed under prior ownership is said to consist of Austin-Healey
calipers and rotors up front along with equipment sourced from a
period Jaguar at the rear. Service in preparation for the sale
including installing a section of brake line to provide under hood
access to the clutch bleed screw, and service under previous
ownership is said to have included rebuilding the steering box.
The 2+2 cabin features low-back front bucket seats trimmed in black
leather with red piping and a matching dash pad, door panels, and
carpeting. Further appointments include a Smiths heater, a
dash-mounted rearview mirror, a chrome passenger-side grab handle,
red front-seat lap belts, polished door caps, and a custom shift
knob fitted with an overdrive switch. A wood-rimmed Moto-Lita
steering wheel equipped with a rebuilt trafficator assembly fronts
Smiths instrumentation consisting of a 120-mph speedometer, a
tachometer with a 4,800-rpm redline, and gauges for oil pressure,
coolant temperature, and fuel level. The five-digit odometer shows
21k miles, approximately 300 of which were added under current
ownership. The speedometer cable and angle drive were replaced
under current ownership, and the speedometer registers low and the
odometer is inaccurate. True mileage is unknown.
The 2.6-liter inline-six was factory rated at 102 horsepower and is
equipped with dual SU carburetors, a Lucas coil, and an
Austin-branded valve cover. Service performed under previous
ownership is said to have included rebuilding the engine and the
carburetors and also replacing the harmonic stabilizer and the
radiator. Power is sent to the rear wheels through a rebuilt
replacement four-speed manual gearbox with a 3.54:1 final-drive
ratio and an electrically actuated Laycock de Normanville
overdrive. The clutch was replaced and the driveshaft was rebuilt
and balanced under previous ownership, and the clutch slave
cylinder was replaced in preparation for the sale. These early cars
had a 3:90 rear end ratio so it probably has the original stock
non-overdrive 3:90 rear. The combination of gearing and the 2.2
overdrive yield a cruising speed of 65 @3000 RPM. This was
determined using a GPS speedometer as the physical speedometer is
not spot-on accurate.
The car starts easily with minimal use of the choke and runs and
drives great. It produces a wonderful full throated note and the
over drive works flawlessly; having the overdrive control on the
gear shift is very convenient and intuitive. All four chrome knock
off for the wire wheels are new and the hardtop is a factory unit
having Serial Number #4/0159 50. New head liner material, panels,
gaskets and seals from Cape International and AH Spares are
included in the sale.
The car is accompanied by removed parts including drum-brake
assemblies, a non-overdrive transmission, a convertible-top frame,
a banjo-style steering wheel, and a set of five steel wheels and
hubcaps. Also accompanying the vehicle are a service manual, two
keys, two convertible tops, and removable side curtains as well as
the uninstalled headliner frame, upholstered panels, window
gaskets, and extra headliner fabric for the hardtop. The older of
the two soft tops has a patch panel across the top, and the
side-curtain gaskets should be replaced.
Attached are a few photos of the top bows which are the ones
required for the Longbridge cars. Note the unique attachment points
which differ between the two sides. The bows open and close very
well and there are 2 of the 4 required webbing attachment sleeves
included. If they are not available from a vendor, they would be
quite easy to fabricate.
Note the underside photos and the underside video which show how
rust-free the frame is on this Healey. That is always a concern on
cars of this age and particularly on these models.
The British Motor Industry Heritage Trust certificate shows that
the car was built for the export market in July 1957 but was first
employed as a demonstrator at Aintree Racecourse in England before
being dispatched to a dealer in Fort Worth, Texas. Additional
details include factory serial numbers, colors, and equipment.
As the BMIHT states, this car was dispatched to Aintree Racecourse
prior to being delivered to a dealer in Fort Worth, Texas. At the
1957 British Grand Prix, identical BN4s were used to carry drivers
around the track - including Stirling Moss - sitting on the rear
shroud prior to the parade lap for the race. These cars (this one
included) were all Ivory White over Black and disc wheeled and
given the initial disposition of the car, it is highly likely that
the car offered for sale here was one of those parade cars. If
Sterling Moss had not sat on the back of this particular car on the
parade lap, some other famous driver apparently did. An interesting
article and photo is shown here:
https://www.oldclassiccar.co.uk/austin-healey.htm and this video of
the 1955 British Grand Prix at Aintree shows the way that a group
of Healeys were used to carry these famous drivers on a parade lap.
The cars in 1955 were 100s and as can be seen in the film they all
had wire wheels. The parade lap portion is from 3:00 to 3:59.
https://www.youtube.com/watch?v=uNsvXGkwnaQ
If you are ready to take a step back in time cruising in this
British beauty do not let that opportunity to own it pass you by.
This will make a truly enjoyable car to cruise the country roads
and to take to shows.
