Vehicle Description
Amazing Custom Build "Real Henry Steel Pickup" Chassis
Hand built frame 2x4" rectangle tubing. 120 wall with 8" rear kick
up, powder coated Custom front cross member all the chassis
fabrication jig/tig welded
Front Suspension
'32 Ford heavy axle dropped by Industrial Chassis, Phoenix, AZ
Durant single leaf front spring
Custom cantilever shocks using '40 arms adapted to concealed
Bilstein shocks
'39 Ford spindles, arms removed
'39 Ford wishbones split and modified
Rear Suspension
Custom cantilever shocks using '46 arms adapted to concealed
Bilstein shocks
'40 Ford transvers front spring used on rear
'39 Ford wishbones split and modified
'59 Ford Ranchero 9" rear-end shortened 1-1/2", 3.25 Posi rear end
Dutchman 28 spline axles
Front Brakes
'40 Lincoln backing plates rotated 180 degrees placing wheel
cylinder on bottom
'40 Lincoln drum brakes, M-T Products Lindsay, CA
'68 Cougar dual-reservoir master cylinder
Rear Brakes
'59 Ford station wagon large diameter brakes
Body

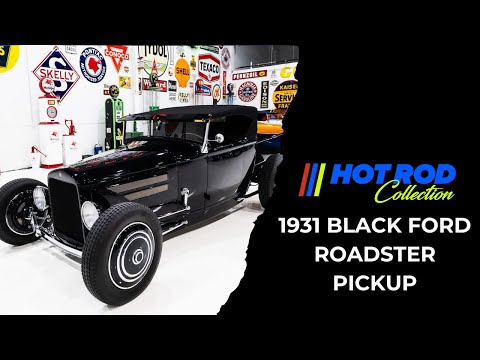

Reproduction 1931 Ford extended cab RPU
Custom bed, tailgate, rear frame covers by Kimmins Custom
Fabrication
'31 Ford school bus grille shell, chopped 2-1/2"
Honeycomb grill insert
4 piece hood with stainless steel screen inserts and polished
hinge
Windshield post shortened 2" and laid back 10 degrees
Curved windshield frame made by owner
'29 commercial headlights painted body color, attached to grill
shell
'37 Ford taillights painted body color
Cowl band removed
Metalwork with help from Loren Richards, Colin Kimmins and Garth
Bowie
Front Wheels and Tires
16 x 4-1/2 early Ford steel wheels
5.00 x 16" Excelsior by Coker
Rear Wheels and Tires
16" � 5-1/2 early steel wheels by Wheelsmith
Owner modified stainless wheel disc, adding ribs, polished and
painted
Paint
PPG base coat clear coat '40 Packard dark blue Bill Knight painted
engine, transmission, wheel covers Mike McAndrew body, bed, hood,
rear end, top bows
Interior
Interior by Glenn Kramer, Hot Rod Interiors Glendale, AZ
Hartz cloth top by Glenn Kramer,
Owner designed/built bows, adding steel visor attached to bows
Reproduction '32 Ford dash, modified adding glove box doors
NOS GM diesel truck gauge panel
Fabricated the steering wheel from "H" beam NASCAR connecting
rods
Steering linkage embedded in kick panel
Pyramid rubber carpet inlayed in custom floor panels
Cowl steering using a German steering box
Drivetrain
327cid 300HP small block Chev machine work by K&K, Prescott,
AZ
Crane cam, Stewart water pump, ProTronix ignition, Holley 4 bbl
carb.
High performance steel Chev heads
Edelbrock intake manifold smoothed and painted
Ram horn 2-1/2" exhaust manifold smoothed and ceramic coated
Transmission
350 Turbo hydro, case is detailed and painted
Shift kit
Genie shifter
Drive shaft, Inland Empire Driveline
The project took over 8 years to complete with help from several
professional friends/builders.
Comments overheard at a Good-Guys event
"This little truck has more tricks than a room full of
Magicians"
