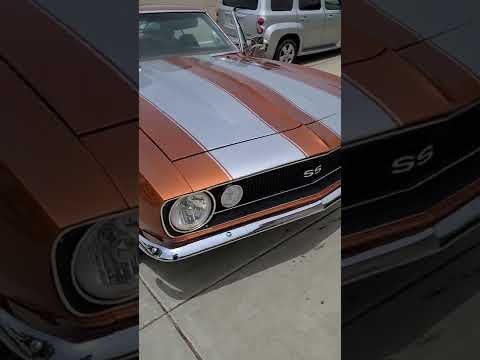

1967 CHEVROLET CAMARO 496 BBC / 4 SPEED / 12 BOLT / HYDROBOOST
CALL OR TEXT 209-843-3817
ENGINE: COMPLETELY REBUILT 496 CUBIC INCH MARK IV 454.
FRESHLY BORED AND TORQUE PLATE HONED. SONIC CHECKED TO ENSURE CONCENTRIC CYLINDER WALL THICKNESS. LINE HONED, SQUARE DECKED, AND NEW CAM BEARINGS INSTALLED ALONG WITH NEW BRASS FREEZE PLUGS.
BRAND NEW SET OF LIGHTWEIGHT, FULLY CNC MACHINED PROBE INDUSTRIES/KEITH BLACK RACING PISTONS AND SPEED PRO PLASMA MOLY RINGS WITH A GAS FRIENDLY 10.25:1 COMPRESSION RATIO.
NEW KING H BEARINGS FOR RODS AND MAINS, ROD AND CAMSHAFT BEARINGS WERE INSTALLED. THE CAMSHAFT IS A NEW COMP CAMS 11- 246- 3 CAMSHAFT XE274H-10. THIS CAMSHAFT IS A DUAL PATTERN HYDRAULIC LIFTER GRIND.552 INTAKE AND .555 EXHAUST LIFT WITH 230/236 DURATION @.050 ON BOTH THE INTAKE AND EXHAUST AND IT IS GROUND ON 110 DEGREE LOBE SEPARATION. THIS CAMSHAFT HAS A DISTINCT LOPY IDLE AND IS DESIGNED TO MAKE MAXIMUM POWER IN THE 2500-6500 RPM RANGE. INSTALLED ALONG WITH THE CAMSHAFT IS A NEW SET OF COMP CAMS LIFTERS AND A TRUE CLOYES DOUBLE ROLLER CHAIN SET.
RODS ARE BRAND NEW PRO-COMP ENTERPRISES FORGED STEEL H BEAM CAP SCREW WITH 7/16 BOLTS AND FULL FLOATING WRIST PINS. THE RODS ARE 6.385. THESE RODS ARE .250 LONGER THAN STOCK. THE INCREASE IN ROD LENGTH PRODUCES LESS SIDE LOAD ON THE PISTON WHICH RESULTS IN LESS FRICTION AND GREATER HORSEPOWER.
THE CRANKSHAFT IS BRAND NEW EXTERNALLY BALANCED AIRCRAFT QUALITY CAST STEEL PRO-COMP CRANKSHAFT.THE CRANKSHAFT IS SHOT PEENED FOR STRESS RELIEVING AND HAS A FULL .125 RADIUS ON THE MAINS AND ROD JOURNALS.
THIS ENGINE IS FULLY BALANCED AND BLUEPRINTED. PISTONS, RODS AND CRANKSHAFT ARE BALANCED TO LESS THEN 1 GRAM. BEARING CLEARANCES WERE SET AT .002 ON BOTH THE MAINS AND RODS.
THE CYLINDER HEADS ARE NEW PRO-COMP ALUMINUM RECTANGLE PORT HEADS HAVE BEEN ASSEMBLED WITH NEW STAINLESS STEEL SWIRL POLISHED MANLEY VALVES (2.25 X 1.88). THESE VALVES ARE 11/32 STEM AND .250 LONGER THEN STOCK, A NEW SET OF POWER HOUSE DUAL SPRINGS AND CHROMOLY RETAINERS WITH HARDENED LOCKS, SPRING LOCATOR CUPS AND A NEW SET OF PC SEALS. THESE HEADS ALSO HAVE NEW COMP CAMS ULTRA PRO MAGNUM ROLLER ROCKERS, NEW PUSHRODS, NEW ARP ROCKER STUDS ,VARIABLE GUIDEPLATES AND A NEW SET OF PRO COMP HEADS STUDS WITH WASHERS AND 12 POINT NUTS.
EDELBROOK 800CFM CARBERATOR AND AIR GAP INTAKE MANIFOLD. NEW STOCK FUEL TANK, STAINLESS FUEL LINES, EDELBROOK FUEL PUMP.
PATRIOT HEADERS. SOLID MOTOR MOUNTS. POLISHED VALVE COVERS AND AIR CLEANER.
NEW OIL COOLER INSTALLED WITH BRAIDED STEEL HOSES. AN FITTINGS AND THERMOSTATICALLY CONTROLLED OIL FILTER SANDWHICH
FULLY WELDED NORTHERN RADIATOR WITH 24PSI CAP AND AFTERMARKET OVERFLOW TANK.
MARCH PULLEY SYSTEM WITH OPEN SLOT FOR AC. 6 RIB BELT SYSTEM.
TRANSMISSION:
FRESHLY REBUILT MUNCIE M20 WIDE RATIO STICK SHIFT. 11 INCH BELLHOUSING AND CLUTCH WITH AUTO GEAR FRONT BEARING RETAINER. GEAR RATIOS ARE 2:52, 1:88, 1:46 and 1:1. HURST SHIFTER. AUTOMETER PULSAR FOR ELECTRONIC SPEEDO.
REAR END:
FRESHLY REBUILT 33 SPLINE, C-CLIP ELIMINATOR, 3:55 EATON POSI REAR END. AXELS ARE 33 SPLINE HIGH TORQUE YUKON AXELS MACHINED TO MATE WITH THE 3:55 POSI AND C-CLIP KIT. STRANGE ENGINEERING C-CLIP ELIMINATOR INSTALLED. 3:55 EATON POSI. HIGH STRENGTH 1350 YOKE. CUSTOM LENGTH DRIVESHAFT WITH HEAVY DUTY U-JOINTS CUT AND BALANCED BY DRIVE LINE SERVICE.
BRAKES:
THE RIGHT STUFF 4 WHEEL DISC BRAKE KIT WITH COLOR MATCH CALIPERS AND DRILLED, SLOTTED, AND ZINC COATED ROTORS. REAR BRAKES USE STOCK SYSTEM E-BRAKE. HYDROBOOST POWER BRAKES FOR ADDITIONAL STOPPING POWER. ALL STAINLESS STEEL BRAKE LINES AND HOSES.
BODY AND PAINT:
CUSTOM BURNT ORANGE COPPER PAINT WITH SILVER STRIPES. SMOOTH FIREWALL. AMERICAN RACING TORQ THRUST ALUMINUM RIMS WITH SUMITOMO TIRES. FULLY REFURBISHED BODY SEALED AND PRIMERED. ALL NEW BODY SEALS AND POLYURETHANE BUSHINGS. ALL NEW TRIM INSTALLED. WING WINDOWS RECHROMED. MOST OF THE GLASS IS NEW. TRUNK PAN AND GAS TANK BRACKETS REPLACED.
INTERIOR:
SEMI CUSTOM INTERIOR. DASH PAINTED TO MATCH EXTERIOR PAINT. AUTOMETER ULTRA LITE II GAUGES. COVAN CENTER DASH PANEL. STOCK BLACK INTERIOR SEATS HEADLINER VISORS DOOR PANELS AND CARPET. STOCK CHROME DASH BEZELS.
