Separating yourself from the pack has always been the foundation of the hot rod movement. Sure, there are a lot of belly button vehicles out there, but then there are other rides that help define a segment rather than just merely following it!

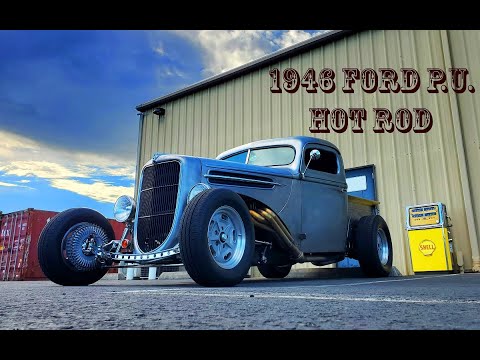

This Ford P.U. before you is the product of plenty of attention to detail and years of blood sweat and tears! This was personally built by Mark Spurlock Co-owner of "A&M Deluxe Customs, Inc". in Cornelius Oregon and the 1st edition was running in 2007 and has been driven and continually upgraded through the years. So far there is an estimated 2400 hours into the building of this fine Hot Rod. The thumping sound comes from a Chevy 366ci L96 engine that gulps air through a “Holley” Hi-Ram intake and dumps it out through handmade equal length S.S. headers and out through the 3” S.S. exhaust system. The tunes that this engine makes through the “Flowmasters” from an idle to 7000 RPM is amazing to say the least, and with the LS technology is starts, idles and revs every time! Another benefit is that it does all that without dripping and fuming any oil!
There way too many parts, modifications and hand made one off items custom made for this vehicle to list. Please look at photos, see video and ask questions if needed.
Possible part trades:
2017-18 GMC 1500 4x4: crew cab, 6.2L, 8 speed. Enclosed trailers: 7'x14' to 8'x24'. Travel trailers: 20' to 25', 4 season rated, smooth sides, std tongue.
-BODY MODIFICATIONS
Cab, 4” chop.
Hoods, Shortened, Sectioned, pinched, Clam shell hinged, Sides were added to on bottom.
Bed- Shortened to 52.5”, Steel bed floor made to fit, custom bulge for Winters Quick change clearance, Bed shirts with flared accent holes.
-CHASSIS
Modified original 1946 “Ford” 1 1/2 Ton chassis.
The rear frame rails were sectioned with a 10.5” kick up.
The original rear X-member was modified for quick change axle and then re-riveted back into place like factory.
The front frame rails were pinched 3.5” and sectioned front frame horns to straighten.
The original front X-member was narrowed 3.5” and then re-riveted back into place like factory.
A custom X-center section was made with oval holes.
Custom rear leaf spring mounts and shackles were made to be a smaller version of originals.
Custom front quarter elliptical spring hangers were made to fit chassis and adjustable ride height.
-SUSPENSION
Front springs are “Posie’s” quarter elliptical.
Rear springs are 90s “Jeep” Wrangler, fronts.
Rear Triangulated 4-Bar with urethane end links.
Front Wish Bones- Hand made, prep for chrome done in house.
-AXLES
Front axle- 1940 “Ford”. All chrome prep and lighting holes done in house.
Rear axle- “Winters” Quick change, 10” Heavy Duty, with 3.92 ratio.
-ENGINE AND TRANSMISSION
“G.M.” 2014 L96 / LS engine, 366 c.i., 6.0L, 520h.p. Texas Speed Stage 4 camshaft and components.
"Holley" Hi-Ram intake and valve covers.
"Lakewood" scatter bell housing with right hand slave cylinder, "McLeod" 12.5lbs Aluminum flywheel.
SD-7 air conditioning pump.
“Richmond” 5-speed w/ “Hurst” Shifter.
-BRAKES
“Wilwood” adjustable bias swing pedals with “Wilwood” triple master cylinders.
“Wilson Welding” finned aluminum backing plates with vintage “Buick” Aluminum 12” 45 fin drums.
-INTERIOR
Custom seat frame with new style support springs, made in house.
Upholstered seat By- Jim Valenzuela, “V34 Custom Interiors”.
“Hot Rod Air” A/C system. Silhouette dash for A/C controls, vents and gauges.
-WHEELS
"American Racing" Salt Flats: shot peened centers and brushed outer hoops, fronts-15 x 4" / rears 17 x 7" .
