LOTUS EUROPA S2 CUSTOM **TARGA TOP ** PROJECT CAR
" PASSION, COMMITMENT, INNOVATION, IS OUR MOTTO "
Before you consider purchasing a lotus Europa that is a barn find project $3K-$10K or a supposedly ground up restoration $25K-$45K be aware of all the issues and hidden costs these very unique cars present for the average sports car enthusiast.
We have attempted to provide individuals looking to begin there personal project building there custom Europa with a solid foundation, with the ability moving forward with confidence knowing key components that will provide reliability have been addressed in a costly manner. With full support we will provide all necessary technical design ,custom fabrication, of all components for them to build a Europa to there standards.
Body Shell . Reinforced windshield fiberglass frame including pillars, rear glass fiberglass surround with steel tubing attached to custom reinforced chassis seat frame,removable reinforced TARGA TOP incorporating all original fiberglass top and doors.
Chassis. Has been media cleaned inspected, center section has been removed and replaced due to excessive rust,insert panel is upgraded with ticker gauge steel for additional strength,complete chassis assembly was placed in jig and all necessary welding and fabrication was performed making sure all front suspension pickup points,rear radius arm points are correct and within factory specifications.
Also included in package is our custom designed driver /passenger seat frame support,providing additional mounting points to chassis increasing the structural integrity and safety necessary for a very bad design. A must for anyone considering getting into a Europa over 150 lbs.
Suspension,Additional Chassis Related Components . All items have been dissembled inspected media cleaned ready to have all necessary service items installed,bearing,bushings,seals and all other relevant components.
COMPLETE FRONT SUSPENSION PARTS.
Upper left /right wishbones (4)
Lower wishbones (4)
Vertical link (2)
Trunnion assembly (2)
Tie rod lever (2)
Stub axle (2)
Hub with good wheel studs (2)
Stub axle washer (2)
Stub axle nut (2)
Bearing dust cap (2)
Caliper mounting fixture (2)
Disc backing plate.(2)
Steering rack (1)
All related dust cap, hardware.
COMPLETE REAR SUSPENSION PARTS.
Right and left radius arms (2)
Right and left bearing carrier (2)
Right and left track rods (2)
All bearing carrier related spacers / hardware
COMPLETE DRIVE SHAFTS, AXLES, HUBS, BRAKES.
Stub axle/ yokes/ drive shaft (2)
Hubs with good wheel studs (2)
Drum backing plates (2)
Drum with (new )shoes all related mounting springs /hardware (2)
Wheel cylinders (need service ) (2)
Hand brake adjuster / levers (2)
Front calipers (2)
Front discs (2)
All related hardware including axle nut / washer .
FRONT SHOCKS / SPRINGS
Coil over shocks and springs with spring rates from 115 lbs - 150 lbs.
Gas shocks with adjustable spring perch.
*Front, sway bar mounting kit
*Reinforced insert between a/arms and shock, instead of just a Stud welded to the bottom of shock O.E Koni or Spax
Rear upper shock mount / chassis cross member, reinforced, gusseted, to be used with modern racing / performance tires and wheels, producing superior grip than original design, adjustable ride height, simply relocating mounting points to chassis without disturbing spring settings.
"Will lower ride height at the rear from 1/2"-1"( based on wheel dia /tire aspect ratios) "
SPAX Racing shocks (C6 1084 ) Adjustable (10) positions,urethane shock bushings, Road race valving , matched with 14" Springs rated and tested @ 115 lbs.
Contact us regarding the purchase cost of this package as is or, we can provide complete restoration services specific to the needs of buyer including wide range of engine / drive line components, and custom suspension .
COMPLETE ROLLING CHASSIS : Chassis/Body All Fiberglass and body repaired with one color vinyl wrap Including Suspension, Brakes, Wheels /Tires.
(Will not include ) Glass / Rubber Trim /Electrical components. $28k-$29k

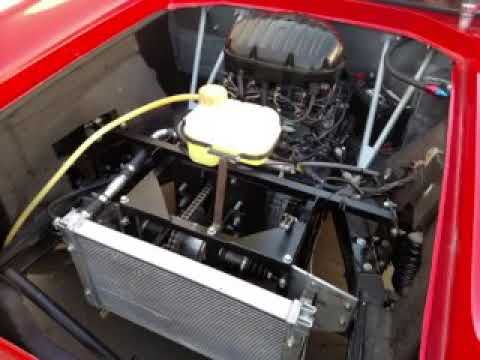

COMPLETE RUNNING CAR : With Our Custom Suzuki GSXR 1000 Engine / Drive Train. $45K- $46K. All other drive train combinations including electric . $49k-50k
(Will not include ) Interior components,carpet kit,seats,door panels,headliner and all other related trim .
* Above costs include the purchase of listed body / chassis / suspension components
FOR FURTHER DETAILS FEEL FREE TO CONTACT US.
